Features:

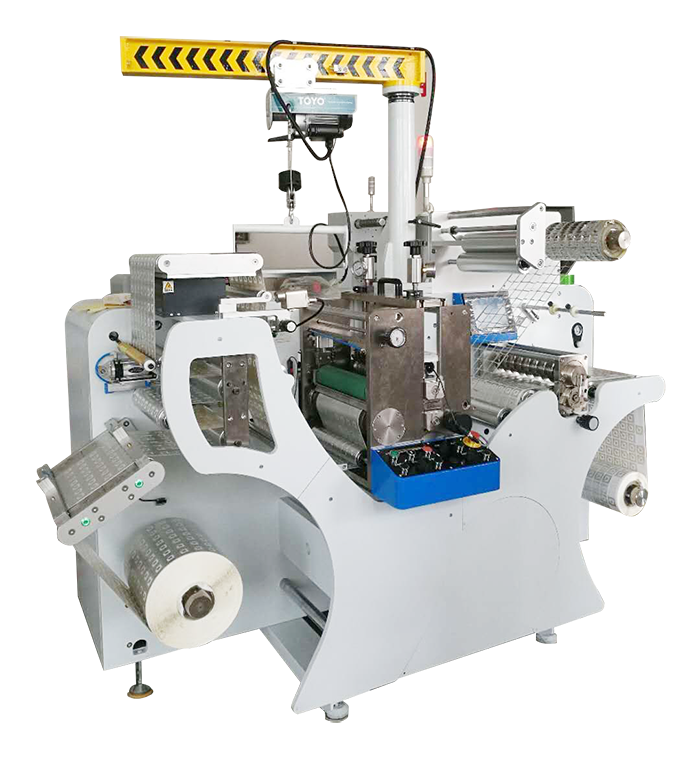

High speed off-line die cutting machine, the die cutting unit adopts independent high-precision servo control system and intelligent frame automatic synchronization system.
The register section is easy to operate, the slitting unit and “snowball” matrix unit are used to greatly improve production efficiency. Especially suitable for self-adhesive and in-mold labels.
Options:
1.Stamping unit( cold and hot stamping can be customized)
2. Laminating unit
3. Slitting unit
Parameter
|
Maximum working speed |
150m/min |
|
Accuracy of die cutting |
≤0.15mm |
|
Maximum die cutting size |
160齿 |
|
Unwind maximum diameter |
800mm |
|
Rewind maximum diameter |
800mm |
|
Air pressure |
40L/min |
|
Power |
12KW |
|
Width*Depth*Height(with hoist) |
2100mm*1200mm*2300mm(含吊车） |
|
Weight |
约2T |
All technical data are approximate.
