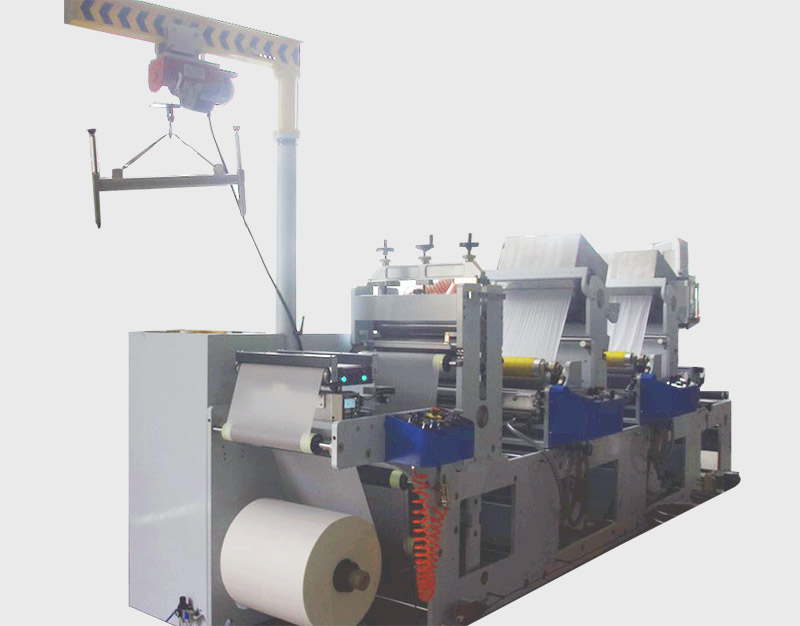

Full-servo coating slitting machine
This machine is mainly used for the coating, slitting and rewinding of 25-100 g/㎡ webs (such as the packaging and decoration of cigarette paper, tipping paper or other types of web).
Features:
1. The rewind and unwind shaft is by air pressure and which is controlled by separate servo motor.
2. The design of the movable touch-panel makes operation more flexible and user-friendly
3. Flat/Round blade slitting and waste edges automatically rewinding
4. The high-precision servo controller researched and designed by ourselves
5. Unwind unit equipped with the BST ultrasonic web-guide device
6. Cantilever small crane lifting design makes it easy to remove the roller.
Parameter
|
Slit and rewind minimum width |
25mm |
|
Unwind maximum outer diameter |
800mm |
|
Rewind Maximum outer diameter |
650mm |
|
Rewind/Unwind shaft diameter |
Customized |
|
Maximum working speed |
200m/min(Depends on the coating materials and the drying) |
|
Paper weight range |
15g-350g |
|
Minimum strip width |
25mm |
|
Power |
80KW |
|
Weight |
约8T |
|
Width*Depth*Height |
6000mm*1600mm*2450mm |
All technical data are approximate
