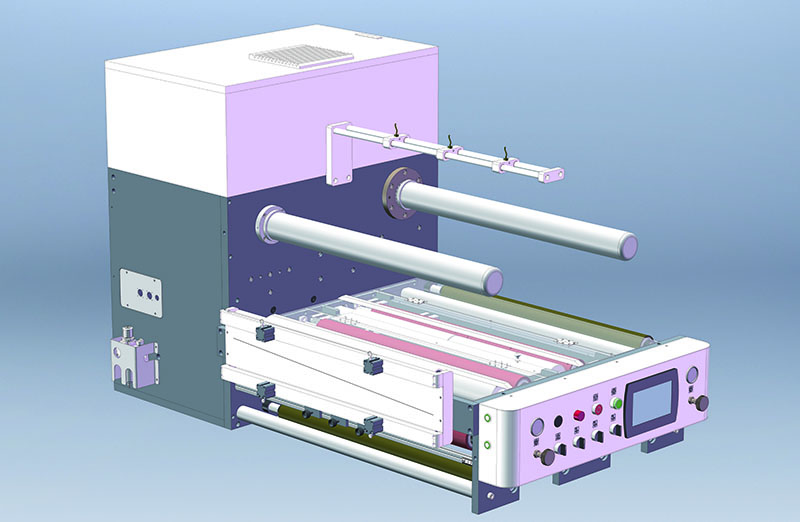

Cold foil transfer unit
The positioning cold foil transfer unit has been developed and designed with modern servo control technology. Cold foil single images can be accurately positioned. The section between two images can now be used for efficient foil usage.
The cold foil transfer unit can be fitted onto any printing press and operates separately which will not be affected by the controls of the printing press.
Parameter
| Maximum cold foil width |
520mm |
|
Electrical requirements |
AC380V/50Hz/60Hz |
|
Power |
4.0Kw |
|
Minimum cold foil width |
20mm |
|
Rewind/Unwind maximum diameter |
400mm |
|
Maximum working speed |
80m/min |
|
Accuracy of positioning image |
≦ ±0.20mm |
|
Width*Depth |
1400mm*720mm |
|
Height |
650mm |
|
Weight |
300KG |
All technical data are approximate.
